Overview

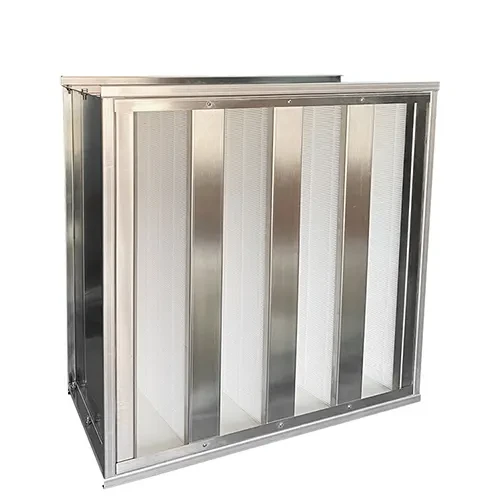

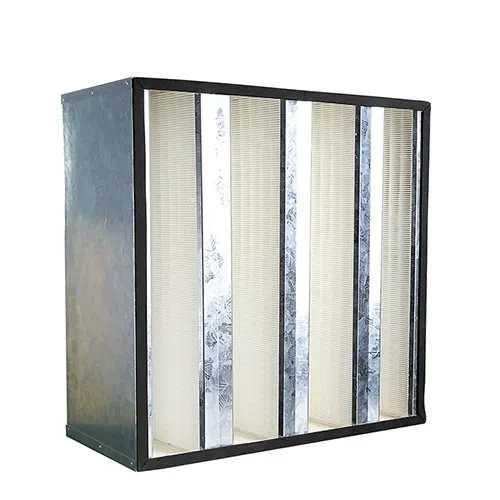

V-Bank filters are engineered to deliver top-tier air filtration. The unique V-shaped design substantially increases the available filter-media surface area, making them exceptionally effective at capturing a wide range of airborne particles — including dust, pollen, mold spores, bacteria and fine particulate matter (PM2.5).
Key Features
- Wide grade range — M6, F7, F8, F9, H10, H11, H12, H13, H14 (MERV 11–16).
- Frame options — galvanized steel, aluminum, stainless steel or ABS plastic.
- Filtration media — fiberglass or polypropylene.
- V-shaped design maximizes the available surface area for high efficiency at high airflow rates.
- High dust-holding capacity with low operation and maintenance cost and convenient installation.
Specifications
| Parameter | Value |
|---|
| Filter media | Ultrafine glass fiber filter |
| Frame material | Aluminum / galvanized / stainless steel |
| Sealant | PU two-component polyurethane adhesive |
| Sealing type | EVA / EPDM / PU |
| Separators | Hot-melt adhesive |
| Optional thickness | 220 / 250 / 292 / 305 mm |
| Maximum temperature | 70°C |
| Maximum humidity | 100% |
Performance by Grade
| Filtration grade | Wind velocity test | Initial resistance | Final resistance |
|---|
| F9 | 2.5 m/s | 125 Pa | 250 Pa |
| H10 | 2.5 m/s | 150 Pa | 450 Pa |
| H13 | 2.5 m/s | 300 Pa | 500 Pa |
| H14 | 2.5 m/s | 320 Pa | 500 Pa |
Standard Sizes
| Dimensions (W×H×D) | Rated airflow (m³/h) |
|---|
| 592×287×292 / 4V | 1,600 |
| 592×592×292 / 4V | 3,200 |
| 610×305×292 / 4V | 1,520 |
| 610×305×292 / 5V | 1,680 |
| 610×610×292 / 4V | 3,250 |
| 610×610×292 / 5V | 3,400 |
Applications
- Second filter stage or prefilter for cleanrooms requiring a high level of cleanliness
- Industrial, commercial, animal husbandry, pharmaceutical, semiconductor, electronics, healthcare and food-processing applications
- Exhaust-air and recirculation applications to better protect air-handling units
OEM/ODM supported for HVAC contractors, AHU manufacturers, cleanroom builders and project buyers.
