MBMP Medium Box Mini Pleat Filter (F6–F8)

MBMP Medium Box Mini Pleat Filter (F6–F8)

Add to quote
SKU: OC-MBMP Category:

Overview

The MBMP Series medium-box mini-pleat filters are widely applied in variable-air-flow systems. They are frequently used in cleanroom applications as pre-filters to extend the service life of high-efficiency filters, or as final filters for certain operating conditions. PU sealant is applied between filter media and frame to effectively prevent air leakage and media damage.

Specifications

  • Media: Micro-fine fiberglass media, or 3-layer composite media (synthetic-fiberglass-synthetic), cleanable with compressed air.
  • Recommended Final Pressure: 1.5″ W.G. (375 Pa)
  • Frame: Interlock Construction Frame, available in galvanized steel, wood and stainless steel (SS).
  • Header: Single Header, Double Header or No-Header models are optional.
  • EN 779 Class: F6, F7, F8
  • Efficiency: F6: 60–65%, F7: 80–85%, F8: 90–95%

Custom sizes are available, with guaranteed filter performance.

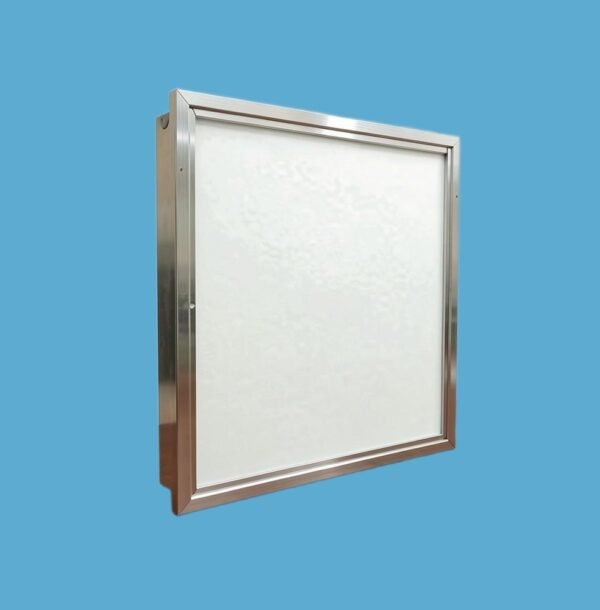

Note: The attached photo shows a stainless-steel single-header sample for reference only. Multiple frame materials and header configurations can be supplied upon request.
