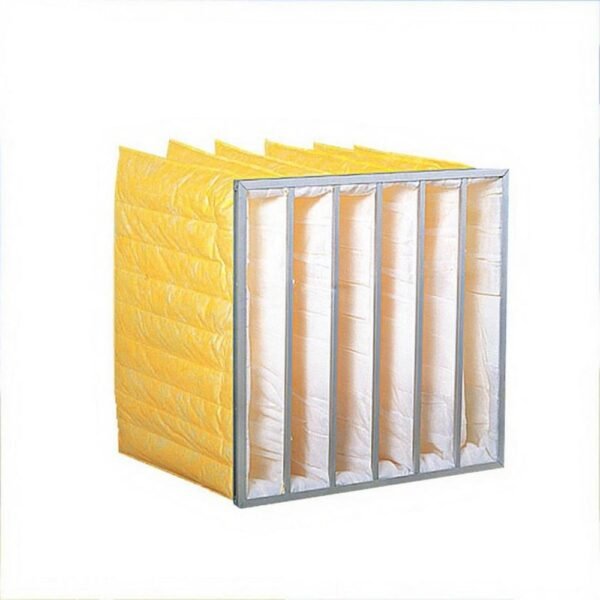

F8 Glass Fiber Medium Efficiency Bag Filter
Customizable F8 fiberglass medium-efficiency bag filter for HVAC, AHU and cleanroom systems. High dust-holding capacity, low resistance and long service life with UL-2 fire rating. OEM/ODM supported.
Overview
Our F8 fiberglass medium-efficiency bag filters combine ultra-fine fiberglass melt-blown media with an optimized V-shape pocket structure to deliver high efficiency, low resistance and long service life. Decades of research and field experience show that fiberglass bag filters offer excellent dust-holding capacity and remain one of the most economical filter choices for ventilation and air-conditioning systems.
Key Features
- Ultra-fine fiberglass melt-blown media — fibers 0.5–5 μm in diameter, numerous and loosely structured for higher efficiency, lower resistance and longer life than comparable media. A synthetic protective scrim on the outlet side prevents media damage and fiber leakage.
- Optimized V-shape pocket structure — gradient-spaced pleat-edge technology keeps every pocket a uniform V channel, so air passes evenly through the entire media layer for full media utilization, improved efficiency, reduced pressure drop and extended service life.
- UL-2 fire rating — the standard fire rating for fiberglass bag filters, meeting the needs of most applications.
- Multiple frame options — galvanized steel or aluminum frames.
Specifications
| Parameter | Options |
|---|---|
| Product name | F8 fiberglass medium-efficiency bag filter |
| Product type | F8 bag filter / medium-efficiency pocket filter / fiberglass bag filter |
| Filter class | F8 (EN 779:2012); ISO 16890 ePM rating on request |
| Average efficiency | 90–95% (EN 779 F8) |
| Filter media | Ultra-fine fiberglass melt-blown media (fiber diameter 0.5–5 μm) |
| Media structure | Optimized V-shape pocket structure with gradient-spaced pleats |
| Fire rating | UL-2 (American standard) |
| Frame material | Galvanized steel, aluminum |
| Outlet scrim | Synthetic fiber protective scrim (prevents media damage and fiber leakage) |
| Size | Standard HVAC sizes and custom sizes |
| Airflow & pressure drop | Depends on filter size, pocket count and airflow |
Applications
Main-stage filtration for commercial, industrial and cleanroom ventilation and air-conditioning systems.
OEM/ODM supported for HVAC contractors, AHU manufacturers, cleanroom builders and project buyers.
