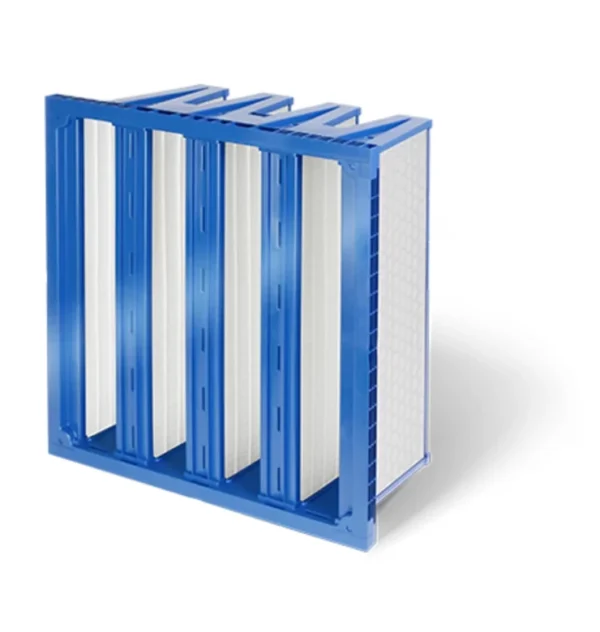

MV 98 HSN Cassette Filter (F9 Fine Filter)
Overview
The MV 98 HSN cassette filter delivers dependable fine filtration with energy-efficient, reliable operating characteristics and a long service life. Its innovative Hybrid-Synthetic Nonwoven (HSN) media makes it an ideal filtration solution for air-conditioning systems with stringent hygiene demands.
Key Features
- Consistently high filtration efficiency under all operating conditions, thanks to the unique Hybrid-Synthetic Nonwoven (HSN) media.
- Low pressure drop and high dust-holding capacity for ultra-efficient, energy-saving operation.

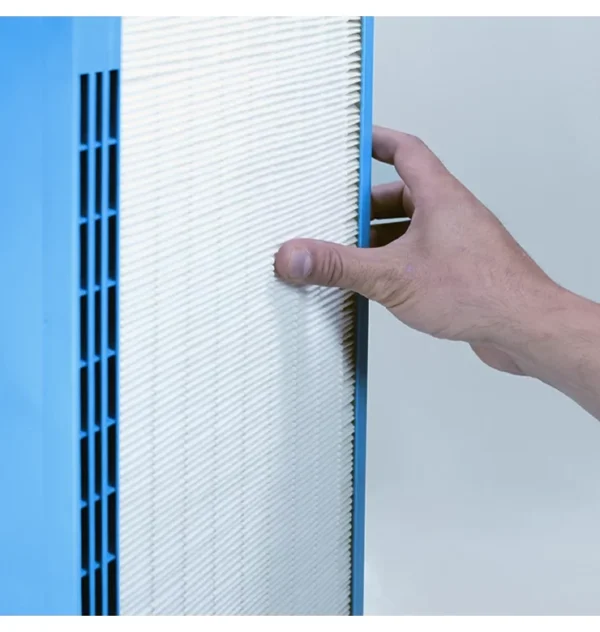

- Pleated HSN media cast in a tough plastic frame in a leak-proof configuration — exceptionally sturdy and water-repellent.
- Highly resistant to chemicals and microbiologically inert.
- Sturdy construction ensures optimum performance even under turbulent flow conditions or during load changes.
Specifications
| Parameter | Value |
|---|---|
| Product name | MV 98 HSN cassette filter |
| Product type | Cassette filter / pleated fine filter |
| Filter class | F9 (EN 779:2012) |
| ISO 16890 | ISO ePM1 80% |
| Filter media | Hybrid-Synthetic Nonwoven (HSN) |
| Frame | Tough plastic frame, leak-proof cast |
| Properties | Water-repellent, chemical-resistant, microbiologically inert |
| Nominal airflow | 1,500–3,400 m³/h (by size) |
| Initial pressure drop | 120 Pa |
| Standard sizes | 592×592×292, 490×592×292, 402×592×292, 287×592×292 |
Model Variants
| Model | Article No. | Dimensions (W×H×D) | ISO 16890 | EN 779 | Airflow (m³/h) | Initial ΔP (Pa) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| MV 98 HSN 1/1 V08X25-Z00N-D33 | 53424230 | 592×592×292 | ISO ePM1 80% | F9 | 3,400 | 120 | 5.8 |
| MV 98 HSN 5/6 V08X25-Z00N-D33 | 53429134 | 490×592×292 | ISO ePM1 80% | F9 | 2,700 | 120 | 4.8 |
| MV 98 HSN 4/6 V08X25-Z00N-D33 | 53490992 | 402×592×292 | ISO ePM1 80% | F9 | 2,100 | 120 | 4.0 |
| MV 98 HSN 1/2 V08X25-Z00N-D33 | 53429135 | 287×592×292 | ISO ePM1 80% | F9 | 1,500 | 120 | 3.3 |
Applications
- Office buildings, production halls, airports, libraries, museums, laboratories, hospitals and care facilities
- Food & beverage, pharmaceuticals, chemicals, optics, electronics and medical technology
OEM/ODM supported for HVAC contractors, AHU manufacturers, cleanroom builders and project buyers.
