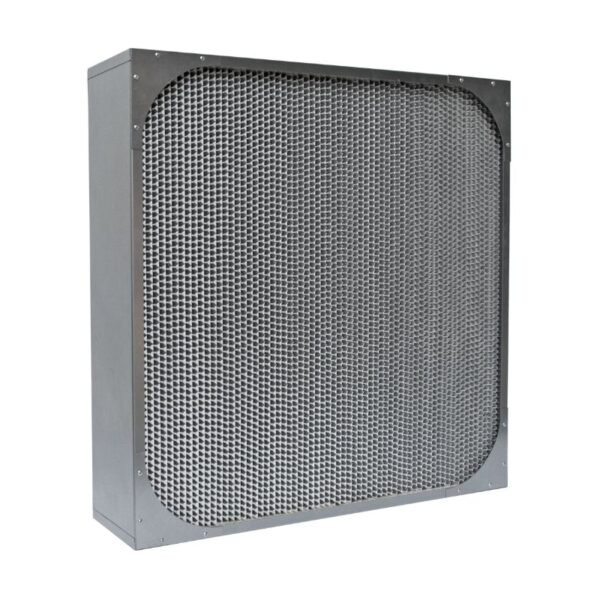

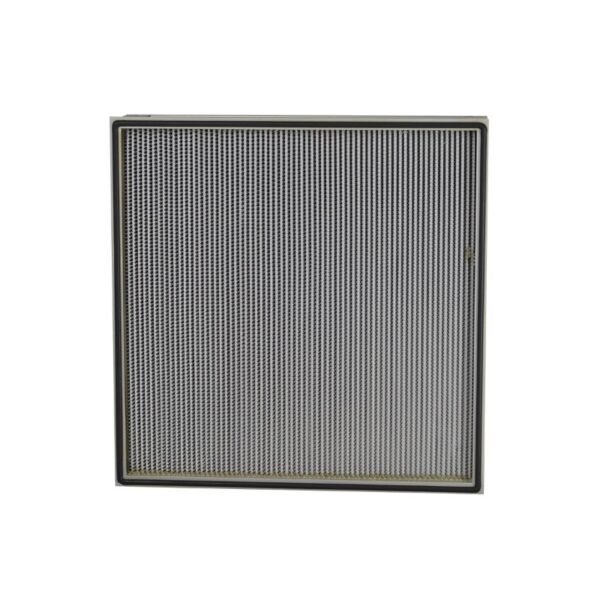

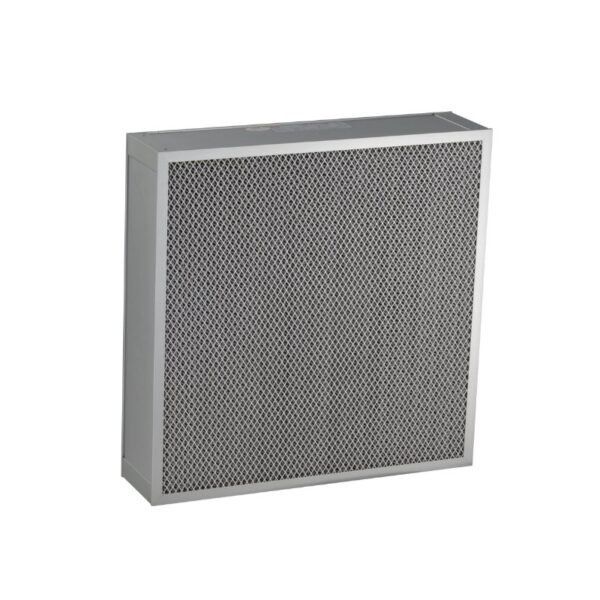

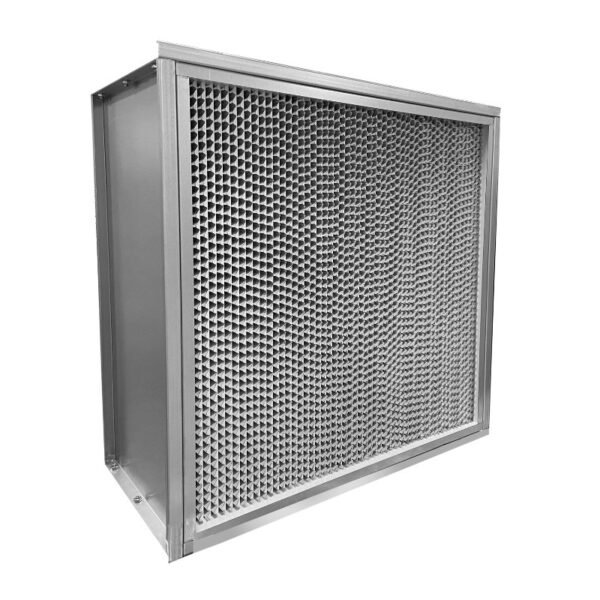

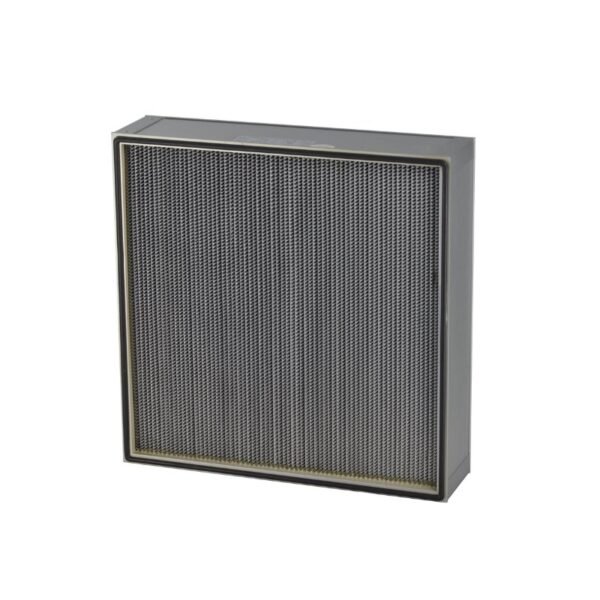

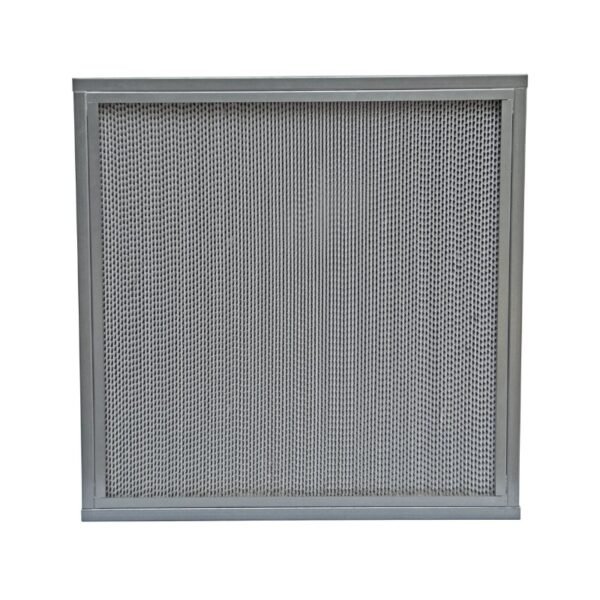

Micro Glass Fiber Separator Filter (K56-B, F5–F10)
Overview
Wedge-shaped pleat design to prevent the filter media from damage.
The filtration material of this sub-HEPA separator filter adopts high-density paper of super-fine glass fiber, which is folded and then separated with aluminum foil pleated by a special machine. A particular concrete interface agent is used to seal all four sides for full airtightness. Before leaving the factory, a performance test is carried out on every filter.
Specifications
- Item NO.: K56-B
- Optional Thickness: 80 / 96 / 120 / 150 / 220 / 292 / 305 mm
- Separator: Offset paper / Aluminum foil
- Gasket: PU foam gasket / EVA / EPDM
- Sealant: Two-component polyurethane glue
- Frame: Extruded aluminum / Folding aluminum / Galvanized steel / Stainless steel / MDF
- Media: Micro glass fiber
- Efficiency: F5, F6, F7, F8, F9, F10
- Max Temperature: Offset paper: 50℃ / Aluminum foil: 100℃
- Max Humidity: 100%
Product Features
- Endless gasket for excellent air tightness
- Even wind speed, big dust-holding capacity
- 100% factory inspection
- Wedge-shaped pleat design to prevent filter media damage
- Big filtration area, big air flow, high efficiency
- 100% humidity resistance
Product Specification
| Model NO. | Actual Size H×W×D (mm) | Air Flow (m³/h) | Media Area (m²) | Face Velocity (m/s) |
|---|---|---|---|---|
| K56-B-001 | 320×320×150 | 400 | 2.59 | 1.09 |
| K56-B-002 | 484×484×150 | 950 | 6.00 | 1.13 |
| K56-B-003 | 630×630×150 | 1600 | 9.59 | 1.12 |
| K56-B-004 | 610×1220×150 | 3000 | 19.17 | 1.12 |
| K56-B-005 | 320×320×220 | 650 | 4.08 | 1.76 |
| K56-B-006 | 484×484×220 | 1500 | 9.46 | 1.78 |
| K56-B-007 | 630×630×220 | 2500 | 16.12 | 1.75 |
| K56-B-008 | 287×592×292 | 1500 | 9.59 | 2.45 |
| K56-B-009 | 592×592×292 | 3000 | 20.01 | 2.38 |
| K56-B-010 | 305×610×292 | 1600 | 10.52 | 2.39 |
| K56-B-011 | 610×610×292 | 3200 | 21.25 | 2.39 |
Note: Other thicknesses (80, 96, 120, 305 mm) and non-standard sizes are available upon request.
