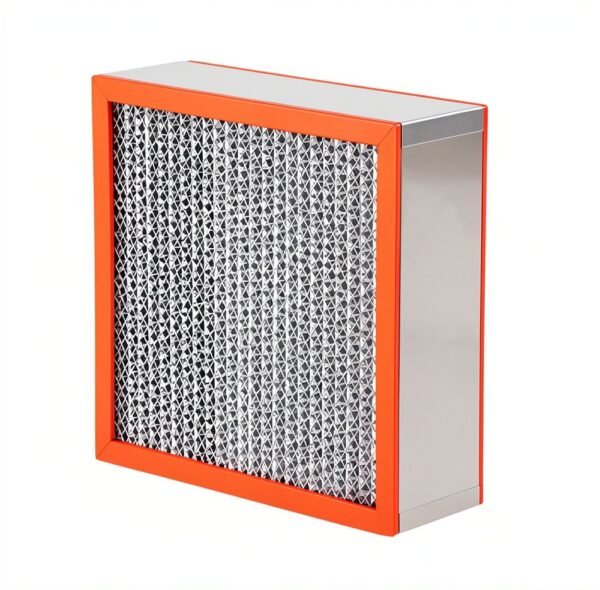

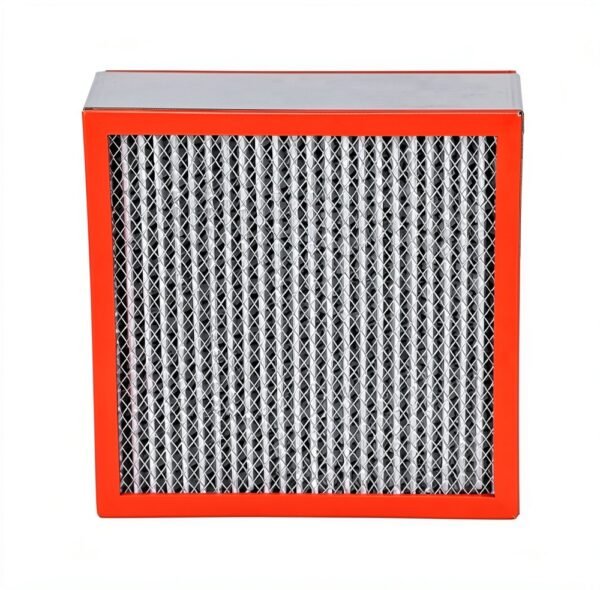

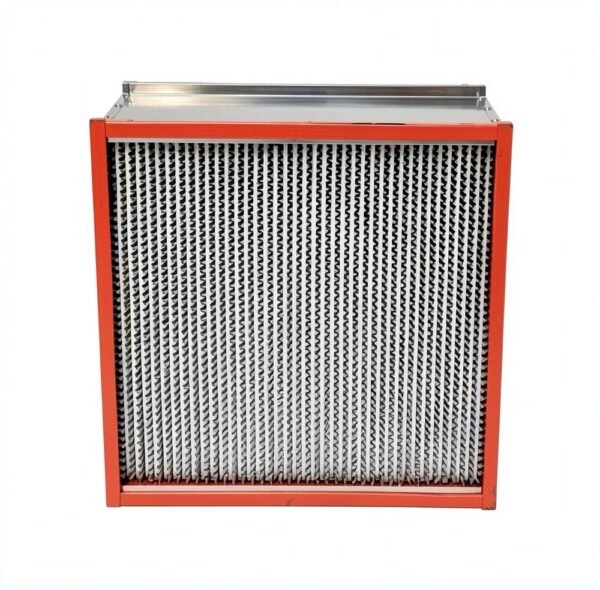

High Temperature Separator HEPA Filter (260℃ / 350℃)
Overview
Our heat-resistant high-efficiency filter is used in ultra-clean drying ovens, sterilization cabinets, and other purifying equipment and systems that require high-temperature conditions. It combines high efficiency, low resistance, large dust-holding capacity, and excellent heat resistance.
Product Description
- Type: Separator
- Frame material: Stainless steel (SUS304 / SUS316L)
- Media: Micro glass fiber
- Separator: Aluminum foil / Glass fiber
- Gasket: Glass fiber rope / Silicone gel
- Filter class: E10 / H13 / H14 (EN 1822)
- Initial resistance: ≤220 Pa
- Standard depth: 90 / 100 / 150 / 220 / 292 mm
Material & Operating Conditions
| Parameter | Specification |
|---|---|
| Media | Micro glass fiber |
| Frame | SUS304 (260℃) / SUS316L |
| Sealant | Silicone (260℃) / Ceramic adhesive (350℃) |
| Gasket | Silicone gel gasket (260℃) / PTFE / Glass fiber rope (350℃) |
| Separator | Aluminum foil |
| Max temperature | 260℃ (with silicone) / 350℃ (with ceramic adhesive) |
| Max humidity | 100% |
Note: Other thicknesses and non-standard sizes are available upon request.
Technical Datasheet
| Model | Type | Size H×W×D (mm) | Air Flow (m³/h) | Initial Resistance (≤Pa) | Media Area (m²) | Face Velocity (m/s) | Filter Grade (EN 1822) | Max Temp (℃) |
|---|---|---|---|---|---|---|---|---|
| YTGX-001 | High temp HEPA | 610×305×150 | 500 | 100 | 4.41 | 0.75 | E10 | 260 |
| YTGX-002 | High temp HEPA | 610×610×150 | 1000 | 100 | 9.30 | 0.75 | E10 | 260 |
| YTGX-003 | High temp HEPA | 610×305×292 | 1000 | 100 | 9.67 | 1.49 | E10 | 260 |
| YTGX-004 | High temp HEPA | 610×610×292 | 2150 | 100 | 20.41 | 1.61 | E10 | 260 |
| YTGX-005 | High temp HEPA | 915×610×292 | 3200 | 100 | 30.61 | 1.59 | E10 | 260 |
Note: More specifications can be customized.
Product Features
- Stainless steel plate frame construction
- Ultra-fine glass fiber filter media
- Aluminum foil separator
- High-temperature-resistant silicone / ceramic adhesive sealant
- High-temperature-resistant silicone strip / glass fiber rope gasket
- Working temperature up to 260℃ (or 350℃ with ceramic adhesive)
Applications
- Ultra-clean ovens and other systems requiring high-temperature air purification
- Equipment and systems requiring high-temperature air filtration, e.g. UV ovens and tunnel furnaces
