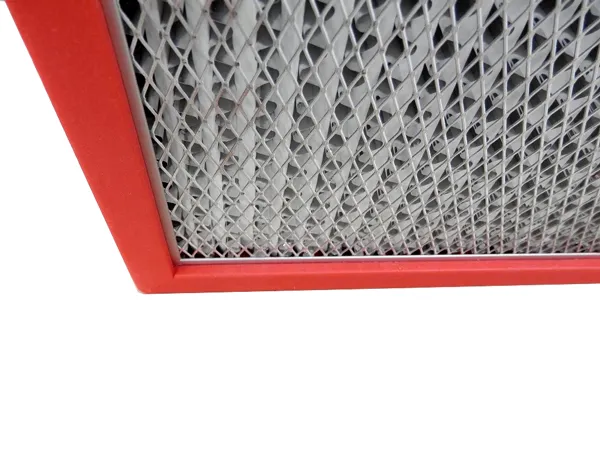

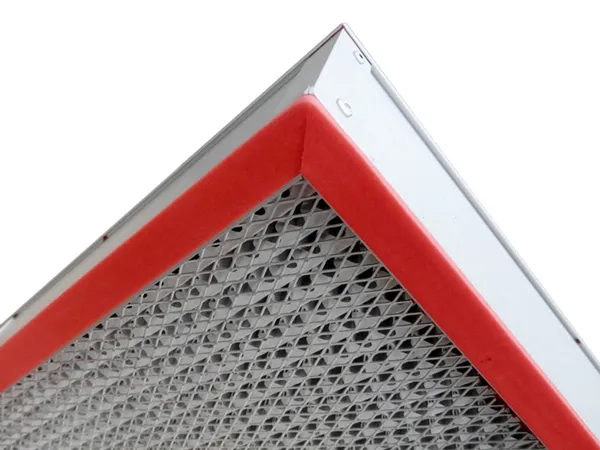

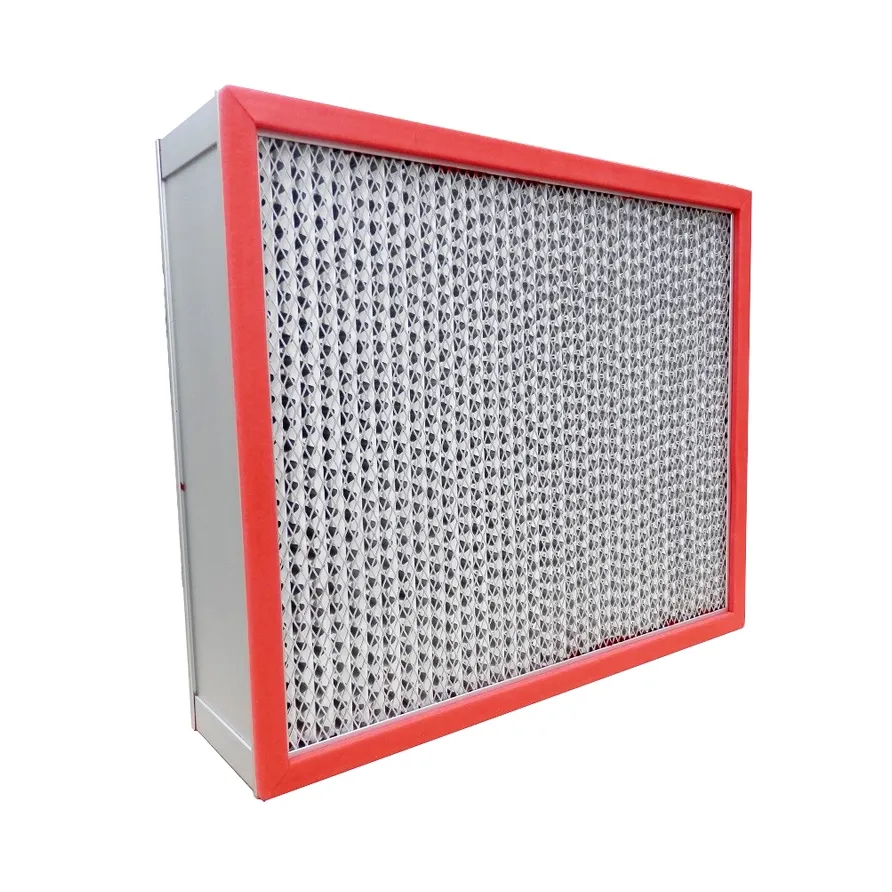

250℃ High Temperature HEPA Air Filter With Alu Frame
250°C high temperature HEPA filter with aluminium frame. Foil separators, high-temperature gasket, laser-scanned MPPS and individually tested with test report.
Overview

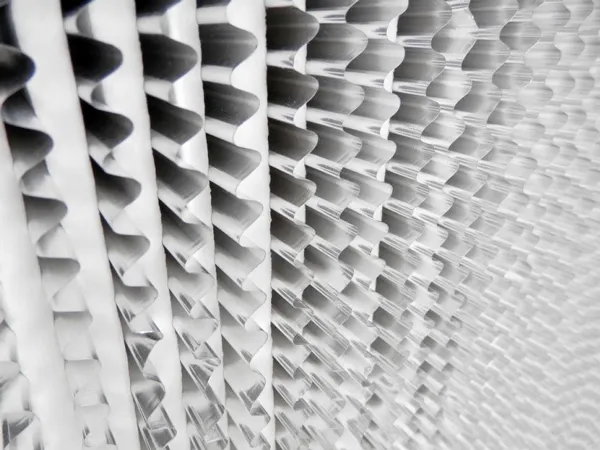

The 250°C high temperature HEPA filter is designed for paint rooms, coating ovens, sterilizing tunnels and other high-temperature process environments. Glass fibre media with aluminium foil separators handles high air volumes at low resistance, and the special high-temperature gasket withstands continuous 250°C operation.
Key Features
- Continuous 250°C operation with high-temperature gasket and glue to prevent air leakage.

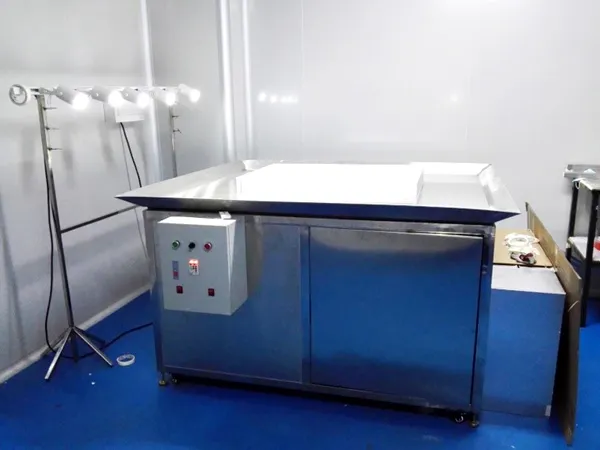

- Laser-scanned one by one (MPPS) — 100% test report provided for every filter.
- Filtration efficiency: H13 (≥99.95%) and H14 (≥99.995%) per EN 1822 at MPPS.
- Frame options: aluminium or stainless steel.
Specifications
| Dimension (mm) W×H×D | Air Flow (m³/h) | Media Area (m²) | Dust Holding (g) | Initial Resistance | Final Resistance |
|---|---|---|---|---|---|
| 484×484×120 | 450 | 4.4 | 230 | H13 <200 Pa / H14 <220 Pa | 400–600 Pa |
| 610×610×120 | 700 | 7.1 | 370 | H13 <200 Pa / H14 <220 Pa | 400–600 Pa |
| 610×915×120 | 1050 | 10.6 | 560 | H13 <200 Pa / H14 <220 Pa | 400–600 Pa |
| 610×1220×120 | 1400 | 14.1 | 740 | H13 <200 Pa / H14 <220 Pa | 400–600 Pa |
| 484×484×150 | 600 | 6.0 | 320 | H13 <200 Pa / H14 <220 Pa | 400–600 Pa |
| 610×610×150 | 1000 | 9.7 | 510 | H13 <200 Pa / H14 <220 Pa | 400–600 Pa |
| 610×915×150 | 1500 | 14.5 | 770 | H13 <200 Pa / H14 <220 Pa | 400–600 Pa |
| 610×1220×150 | 2000 | 19.3 | 1020 | H13 <200 Pa / H14 <220 Pa | 400–600 Pa |
| 484×484×220 | 1000 | 9.8 | 600 | H13 <200 Pa / H14 <220 Pa | 400–600 Pa |
| 610×610×220 | 1600 | 15.8 | 920 | H13 <200 Pa / H14 <220 Pa | 400–600 Pa |
| 610×915×220 | 2300 | 23.7 | 1340 | H13 <200 Pa / H14 <220 Pa | 400–600 Pa |
| 610×1220×220 | 3000 | 31.6 | 1750 | H13 <200 Pa / H14 <220 Pa | 400–600 Pa |
Other sizes and configurations available on request.
Applications
Pharmaceutical factories, high-temperature sterilizing tunnels, high-temperature drying rooms and high-temperature paint rooms or ovens.
