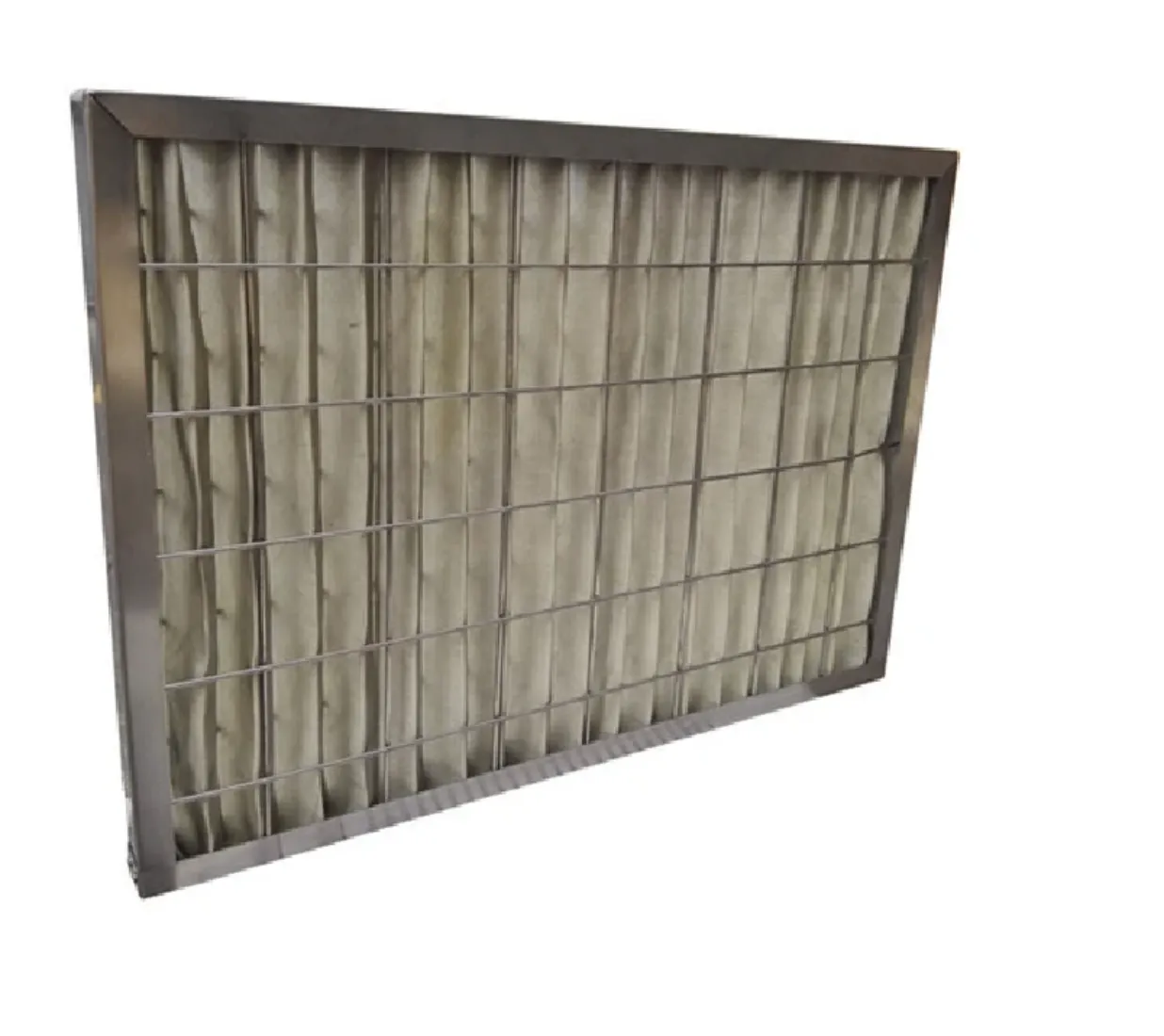

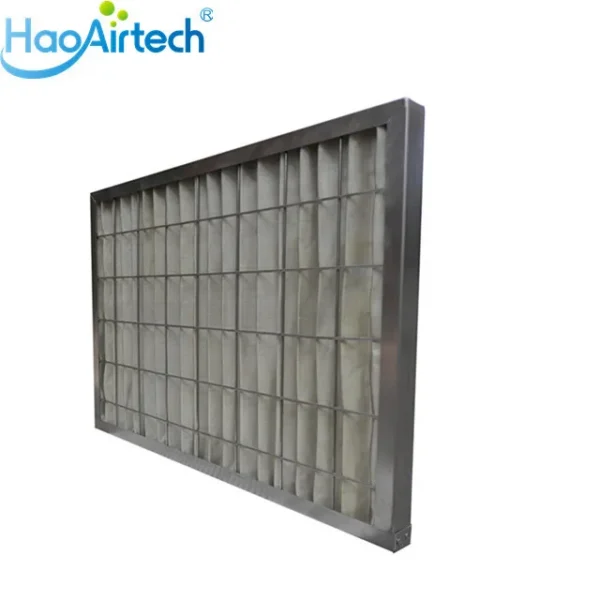

300 Degree High Temperature Pleat Prefilter For Spraying Plant
300°C pleated high temperature prefilter for spray plants and coating ovens. Stainless steel 304 frame, metal grid guards, G2/G3/G4/F5 efficiency grades (EN 779).
Overview
The 300°C pleated high temperature prefilter protects downstream HEPA filters in spray booths, coating plant ovens and hot-air drying equipment. It collects particles, dust and suspended solids above 5 µm with large air volume, low resistance and high dust capacity.
Key Features
- Endures continuous 300°C operation.
- High air volume, low resistance with high dust-holding capacity.

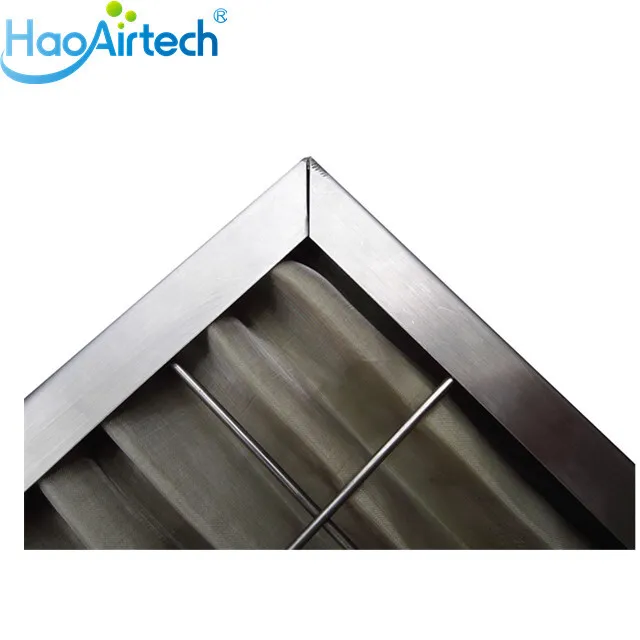

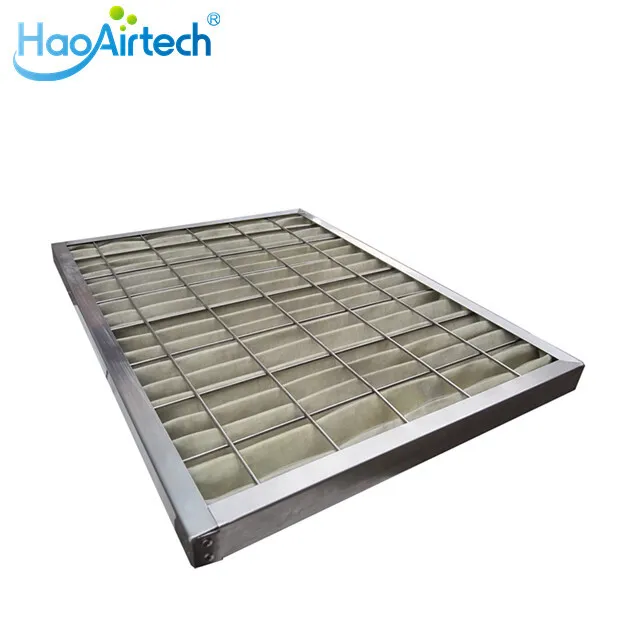

- Stainless steel 304 frame (T=1.2mm) or aluminium profile for long-term high-temperature service.

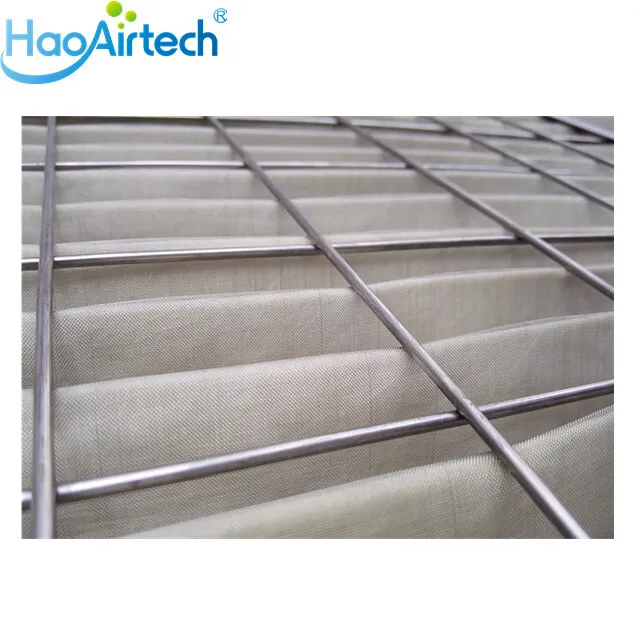

- Metal grid guards on both sides keep Z-line pleats regular and protect the media.
- Fire-resistant media with no fibre breakage or loss; low moisture absorption and good chemical resistance.
Specifications
| Dimension (mm) W×H×D | Air Flow (m³/h) | Media Area (m²) | Dust Holding (g) | Primary Resistance | Final Resistance | Efficiency |
|---|---|---|---|---|---|---|
| 595×595×46 | 3200 | 1.23 | 104 | 30 Pa | 100–200 Pa | G2 |
| 595×595×46 | 1174 | 1.23 | 40 | 30 Pa | 100–200 Pa | G3 |
| 595×595×46 | 2224 | 1.23 | 45 | 30 Pa | 150–250 Pa | G4 |
| 595×495×46 | 2600 | 1.02 | 87 | 30 Pa | 100–200 Pa | G2 |
| 595×495×46 | 974 | 1.02 | 30 | 30 Pa | 100–200 Pa | G3 |
| 595×495×46 | 1844 | 1.02 | 45 | 30 Pa | 150–250 Pa | G4 |
Efficiency classes G2, G3, G4 and F5 (EN 779) available. Other sizes on request.
Applications
Pre-filtration (primary filtration) for hot-air high-temperature ovens, coating plant high-temperature ovens and spray booth intakes.
